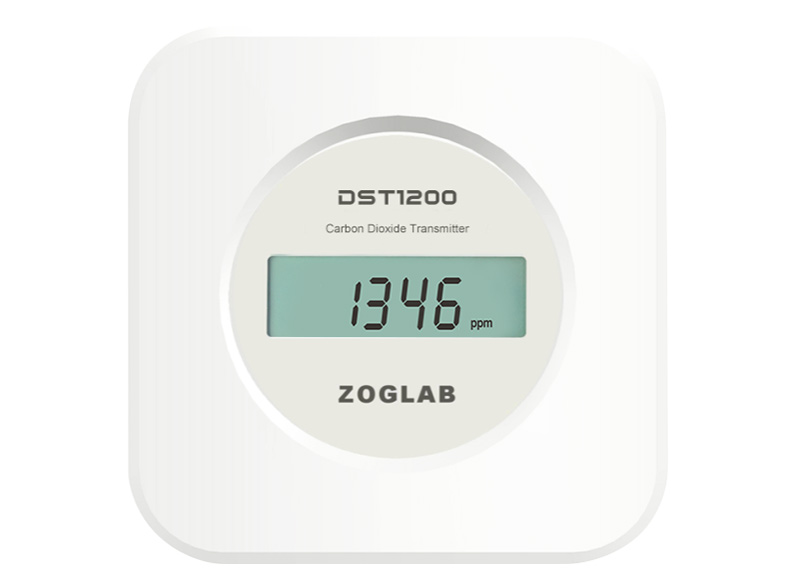

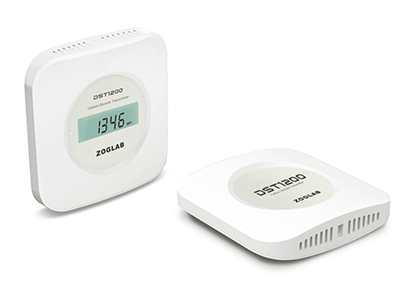

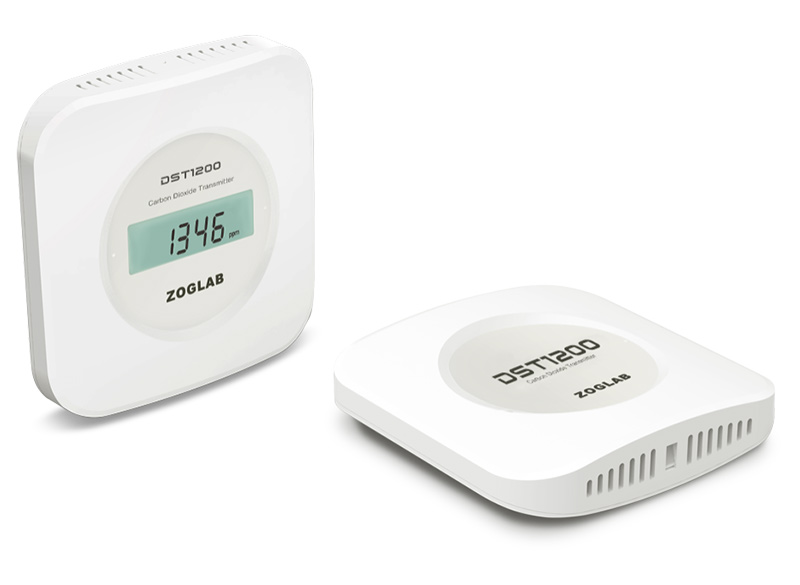

DST1200
CO? Transmitter
Specifications
· NDIR (non-dispersive infrared) waveguide technology
· CO? measurement accuracy from 40ppm to 70ppm optional
· Varies measurement range available
· Optional analog signal or RS485 output
· Wide angle view LCD screen with CO? readings in real time
· Toxicity and halogen free material, complying with GXP standard
Certificate
|
Specification
Measuring Data
| DP Measuring Range | 0~2000ppm，0~5000ppm，0~10000ppm |
| DP Accuracy | ±70ppm，±40ppm |
| DP Resolution | 1ppm |
General
| Power Supply | 4~20mA (0.02×RL+10V)<UV<30V DC 5V~28V DC (0~5V 8V DC~28V DC 0~10V 14V DC~28V DC) |
| Working Temperature | -30℃~70℃ , -40℃~85℃(No display) , 0℃~50℃(Best fit) |
| Storage Temperature | -50℃~90℃ |
| Transmitter Type | 3 wire 4~20mA,Voltage output,RS485 |
| Analog Output | 4~20mA RL<(UV-10) / 0.02< 500Ω , 0~10V -1mA<IL<1mA , 0~5V -1mA<IL<1mA 0~1V -1mA<IL<1mA |
| Power Consumption | Average currents 35mA , peak current 305mA(24V DC) |
| Digital Output | RS485(Only for DD version) |
| ESD Protection | ±25KV |
| IP Class | IP50 |
Sensing Probe
| Model | NDIR |
General Feature
| Dimensions | 100.0×100.0×25.5mm |
| Housing | ABS+PC,flame-retardant,toxicity and halogen free |
| Weight | 83g |

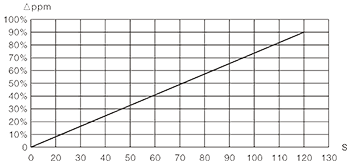

Response Time |
 |

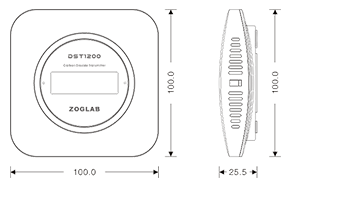

Dimensions（Unit : mm）： |

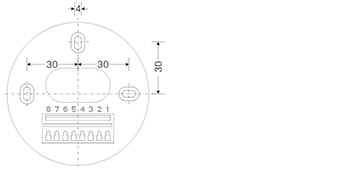

Wall Dimensions（Unit : mm） |
 |
 |
