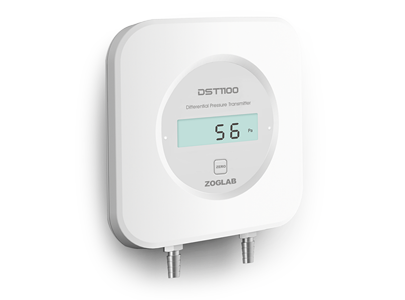

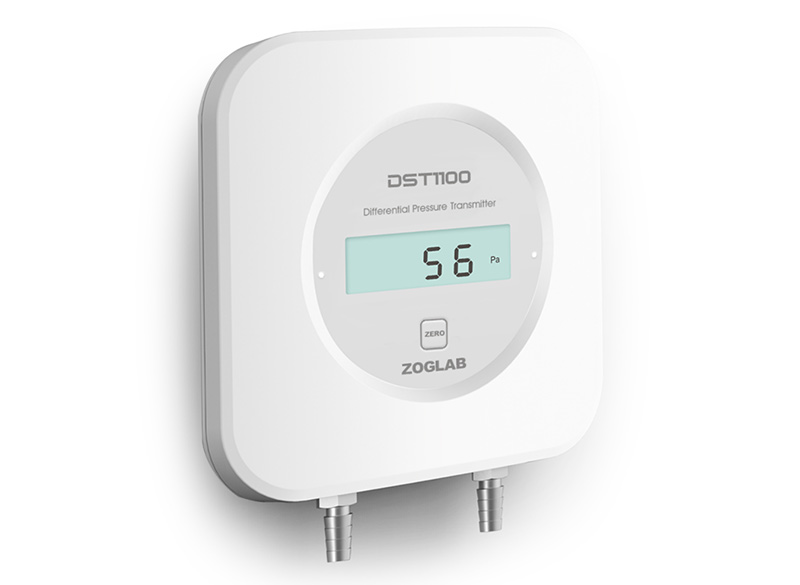

DST1100
Differential Pressure Transmitter
Specifications
·?Measuring resolution high to 1Pa, best accuracy of ±0.5%FS±2Pa
· Customized differential pressure measuring range between -1000 and 1000Pa
· Support on-line linear calibration and zero setting
· Optional analog signal and digital signal
· Digital calibration technology, on-line calibration supported
· Toxicity and halogen free material, complying with different GXP standard
Certificate
|
Specification
Measuring Data
| DP Measuring Range | -100~100Pa，-200~200Pa，-500~1000Pa，-1000~1000Pa |
| DP Accuracy | ±0.5%FS±2Pa |
| DP Resolution | 1Pa |
General
| Power Supply | 4~20mA (0.02×RL+10V)<UV<30V DC 5V~28V DC (0~5V 8V DC~28V DC 0~10V 14V DC~28V DC) |
| Working Temperature | -30℃~70℃,-40℃~85℃(No display) |
| Storage Temperature | -50℃~90℃ |
| Transmitter Type | 2 wire 4~20mA,Voltage output,RS485 |
| Analog Output | 4~20mA RL<(UV-10) / 0.02< 500Ω , 0~10V -1mA<IL<1mA , 0~5V -1mA<IL<1mA 0~1V -1mA<IL<1mA |
| Power Consumption | ≤4mA(24V DC) |
| Digital Output | RS485(Only for DD version) |
| ESD Protection | ±25KV |
| IP Class | IP50 |
Sensing Probe
| Model | Silicon Piezoresistive Sensor |
General Feature
| Dimensions | 114.0×100.0×25.5mm |
| Housing | ABS+PC,flame-retardant,toxicity and halogen free |
| Weight | 91g |

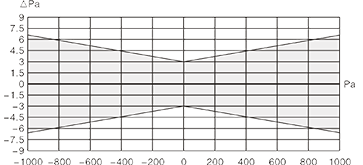

Differential Pressure Accuracy |
 |

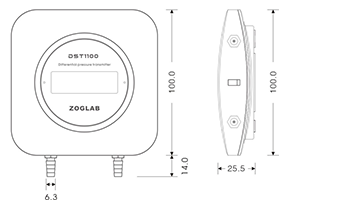

Dimensions（Unit : mm）： |

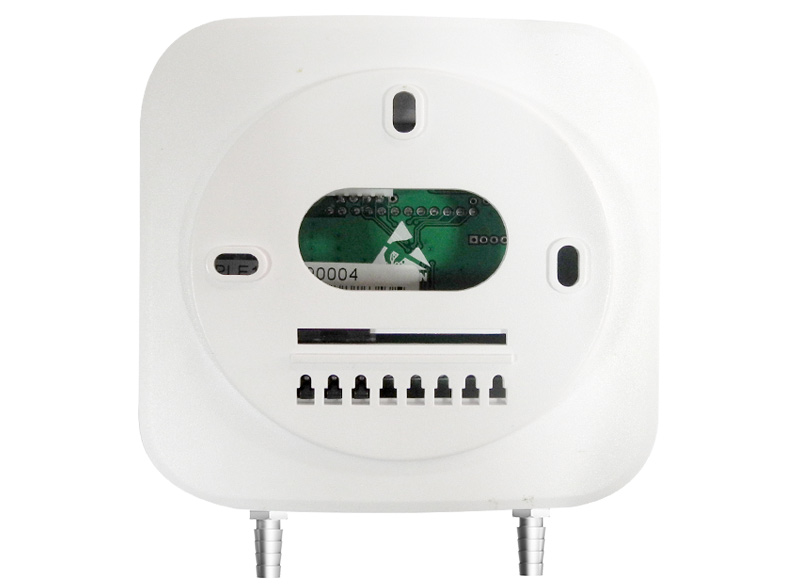

Wall Dimensions（Unit : mm） |
 |
 |
