MINI-TH
MINI Data Logger for Temperature and Humidity
Specifications
· Large-screen display of temperature and humidity, with battery, memory , recording status show together
· High precision, mass memory for long-term logging
· Free of toxicity and halogen as FDA / HACCP / ISO22000 require
· Resistant to water and dust, suitable for cold chain systems of fresh food, fruit, vegetables or wine
· Available Mini data logger with no LCD, for more redundant working temperature
Certificate
|
|
Specification
Measuring Data
| T Measuring Range | -30℃~70℃,-40℃~85℃（No display） |
| T Accuracy | ±0.5℃, ±0.3℃（High-precision version） |
| T Resolution | 0.1℃/0.2℉ |
| RH Measuring Range | 0%~100%RH |
| RH Accuracy | ±3%RH(10%~85%RH) / other range ±5%RH(Testing Environment 23℃±2℃) /±2%RH(High-precision version) |
| RH Resolution | 0.1%RH |
General
| Memory Size | 15,000 /30,000 units |
| Alarm | High level and low level , Display+beep+backlight , support alarm mark |
| Sampling Interval | 2s、5s、10s、30s、60s、255s |
| Logging Interval | 2seconds~24hours |
| Start with Delay Time | 1~120s |
| Start Mode | Key operation（software could be customized） / Start immediately / Time-lapse start / Timing start |
| End mode | Key operation（software could be customized） / Full / FIFO / Presetting units / Timing end |
| Timing Start / End | Random start / End with format YYMMDD HHMMSS |
| Storage Temperature | -50℃~90℃ |
| ESD Protection | ±25KV |
| Interface | Mini USB 2.0 |
| Battery | 3.6V lithium battery ×1（Rechargeable） |
| Battery Lifetime | 1 year (with a sample rate of 60 seconds) |
| Software | ANALYSIS 3 |
| IP Class | IP64 |
Sensing Probe
| Model | Internal |
General Feature
| Dimensions | 86.2×64.2×25.4mm |
| Display Area | 41×30mm |
| Housing | ABS+PC,flame-retardant,toxicity and halogen free |
| Weight | 85g |
Temperature Accuracy |
Humidity Accuracy |
 |
 |

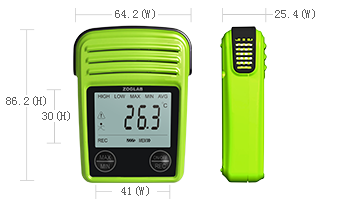

Dimensions（Unit : mm）： |
 |
