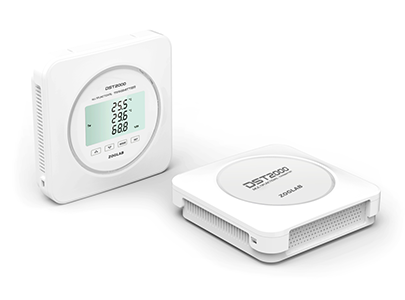

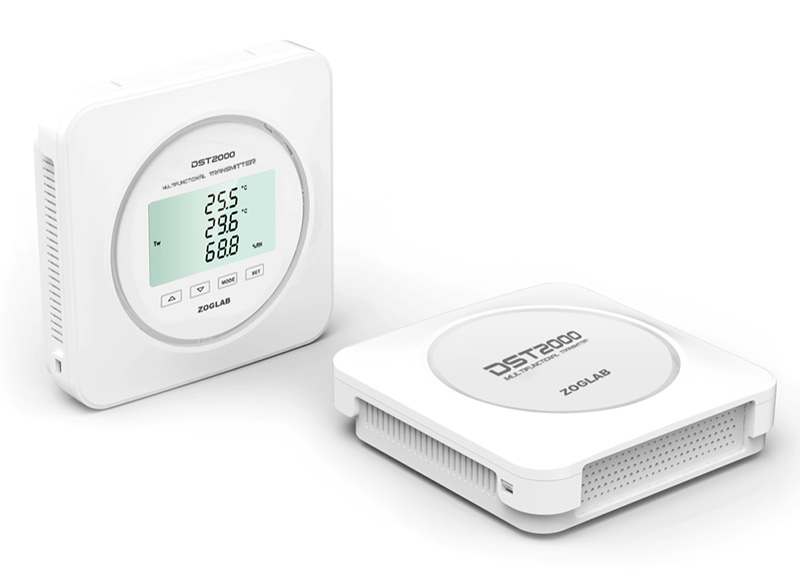

DST2000
Multifunctional transmitter
Specifications
· Multiple measuring elements

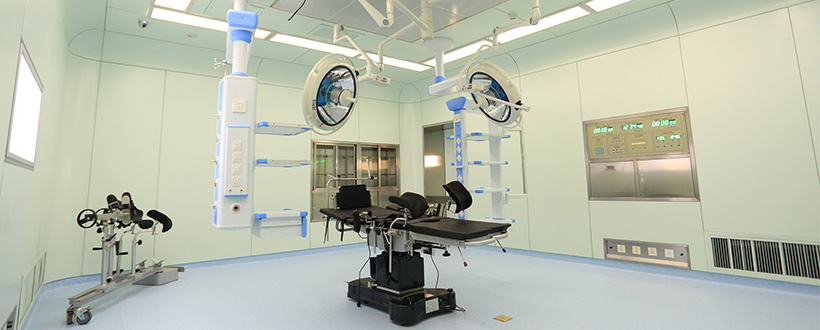

· Applied to clean rooms and kinds of biological laboratories

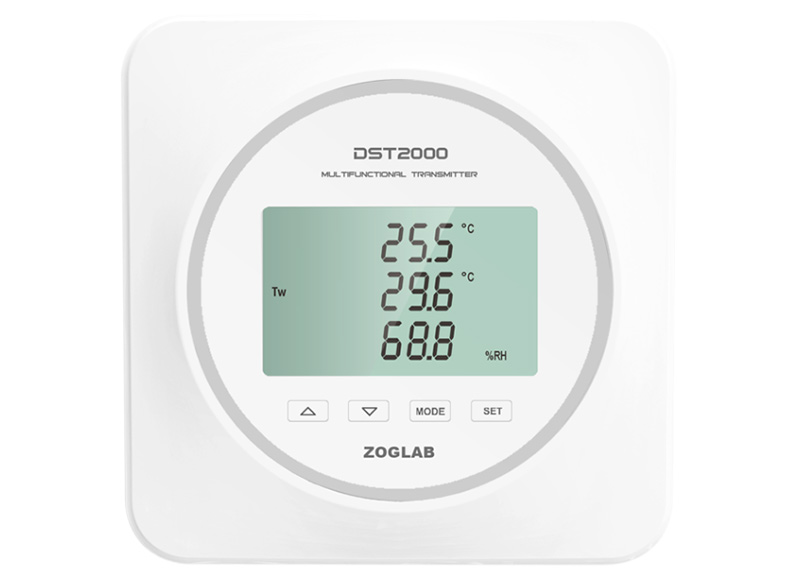

· Simultaneous display of three measuring data
· Analog or digital output with current ,voltage and RS485
· Replaceable digital probes
· MODBUS protocol supported to be integrated into configuration software
Certificate
|
Specification
Measuring Data
| T Measuring Range | 0℃~50℃,-30℃~70℃,-40℃~60℃ |
| T Accuracy | ±0.3℃(23℃±2℃), full scale ±0.5℃ |
| T Resolution | 0.1℃/0.2℉ |
| RH Measuring Range | 0%~100%RH |
| RH Accuracy | ±3%RH(10%~85%RH) / ±2%RH(High accuracy) |
| RH Resolution | 0.1%RH |
General
| Power Supply | 4~20mA (0.02 x RL+10V)<UV<30V DC , 0~1V / 0~5V 10V DC~30V DC 0~10V 15V DC~30V DC |
| Working Temperature | -30℃~70℃，-40℃~60℃(No display)，0℃~50℃(Best fit) |
| Working Humidity | 0%~100%RH |
| Storage Temperature | -50℃~90℃ |
| Transmitter Type | 3 wire 4~20mA,Voltage output,RS485 |
| Analog Output | 4~20mA RL<(UV-10)/0.02< 500Ω , 0~10V -1mA<IL<1mA , 0~5V -1mA<IL<1mA 0~1V -1mA<IL<1mA |
| Power Consumption | ≤4mA(24V DC) |
| Digital Output | RS485 |
| ESD Protection | ±25KV |
| IP Class | IP50 |
Sensing Probe
| T Sensor Model | NTC / PT1000 |
| RH Sensor Model | Humidity capacitance / MEMS |
General Feature
| Dimensions | 120.0×120.0×32.5mm |
| Housing | ABS+PC,flame-retardant,toxicity and halogen free |
| Display Area | 59×37mm |
| Weight | 300g |

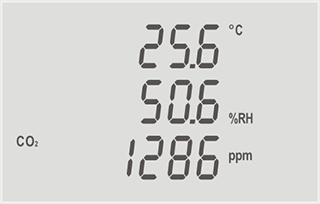

Display： |
 |

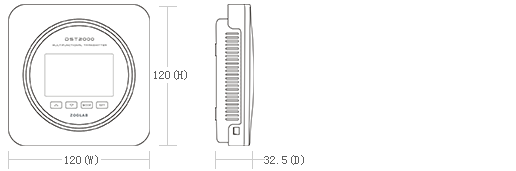

Dimensions（Unit : mm）： |
 |
