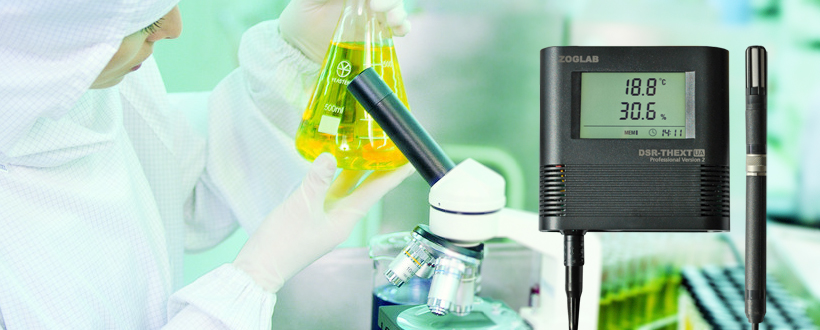

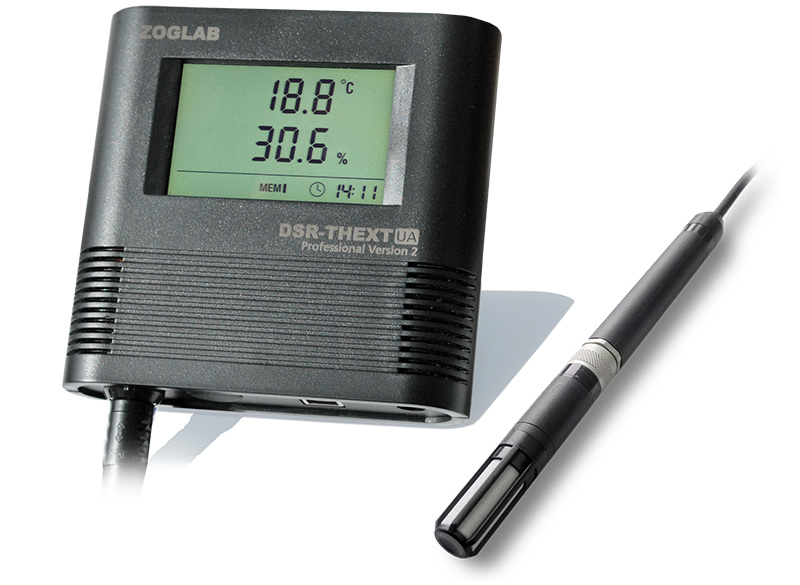

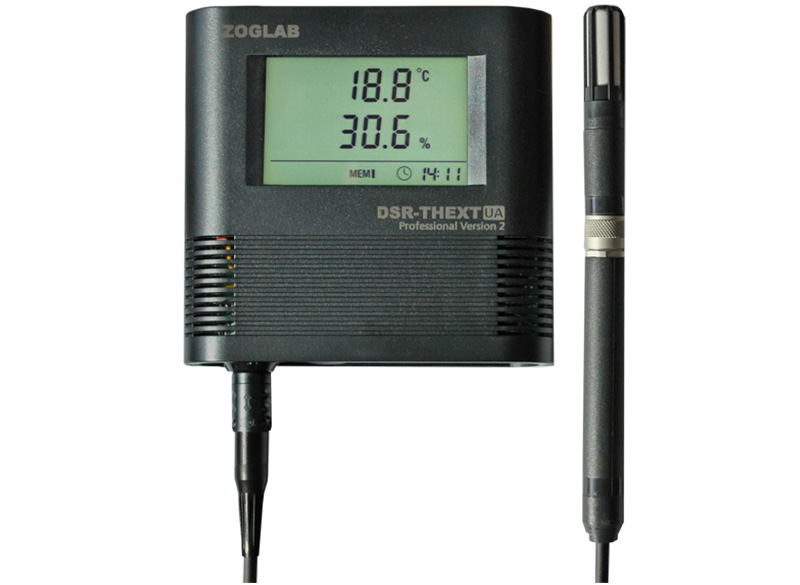

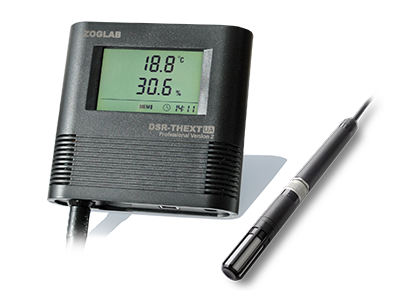

DSR-THEXT(professional)
Data Logger for Temperature and Humidity
Specifications
· Original high precision digital temperature and humidity probe with accuracy of ±0.3℃ and ±0.8%RH
· Sensor cable being resistant to both high and low temperature, fit for harsh environment
· Original fittings for sensor connection, ensures 100,000 plugs
· Suitable for high precision laboratories, biochemistry workshops, HVAC and other applications
Certificate
|
The DSR series data logger has been tested and found to comply with the qualifications designed by China Meteorological Administration and China State Bureau of Quality and Technical Supervision.
The DSR series data logger possesses multiple international patents and obtains the European Union CE certificate and FCC certifications.In addition,it has been assessed and found to meet the requirements of ISO 9001:2000 standard.The assorted data analysis software possesses independent intellectual property and achieves multiple national software certifications.
Specification
Measuring Data
| T Measuring Range | -40℃~85℃ |
| T Accuracy | ±0.2℃(23℃±2℃), full scale ±0.3℃ |
| T Resolution | 0.1℃/0.2℉ |
| RH Measuring Range | 0%~100%RH |
| RH Accuracy | ±0.8%RH(40%~60%RH) / other range±1.5%RH(Testing Environment 23℃±2℃) |
| RH Resolution | 0.1%RH |
General
| Memory Size | 10,918[A] / 21,840[B] / 180,000[C] / 360,000[D]values |
| Alarm | High level and low level, display+beep+backlight |
| Sampling Interval | 2s、5s、10s、30s、60s、255s |
| Logging Interval | 2seconds~24hours |
| Start with Delay Time | 1~120s |
| Start ModeStart Mode | Start immediately / Time-lapse start / Timing start |
| End Mode | Full / FIFO / Presetting units / Timing end |
| Timing Start / End | Random start / End with format YYMMDD HHMMSS |
| Storage Temperature | -50℃~90℃ |
| ESD Protection | ±25KV |
| Interface | RS232 / RS485[R] / USB[U] / LAN[L] / Wireless [W、B、Z、F、G] |
| Battery | 3.6V lithium battery ×1 |
| Battery Lifetime | Typical 1year (with a sample rate of 10 seconds),5 years （in sleep mode） |
| RTC Battery | CR2032 |
| Clock Accuracy | <12 mins/year |
| External Voltage | 5~24V DC |
| Software | ANALYSIS |
| IP Class | IP54 |
Sensing Probe
| Model | Original temperature and humidity probe |
| Dimensions | Φ15×184.5mm |
| Wire | Φ5，2 / 5 / 10m, low-temperature and corrosion resistant |
General Feature
| Dimensions | 123×117.3×33.4mm |
| Display Area | 66×42mm |
| Housing | ABS+PC,flame-retardant,toxicity and halogen free |
| Weight | 360g |

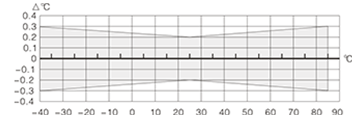

Temperature Accuracy |

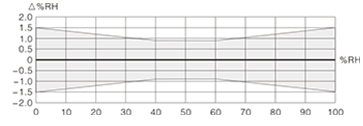

Humidity Accuracy |
 |
 |
Dimensions（Unit : mm）： |
 |
