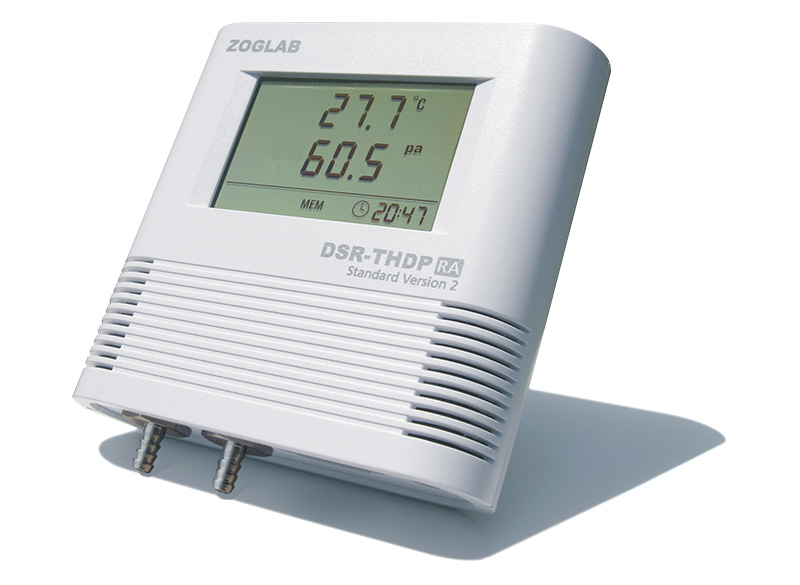

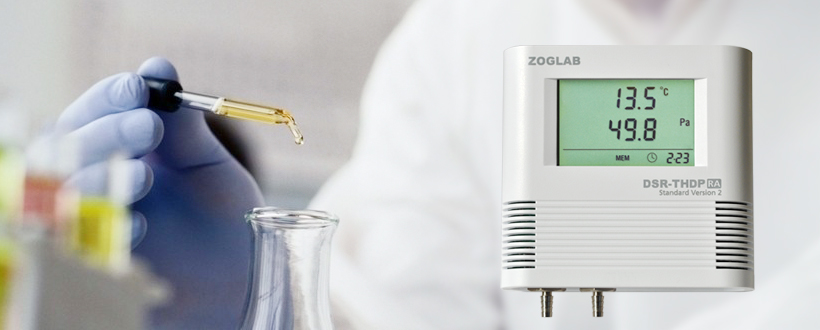

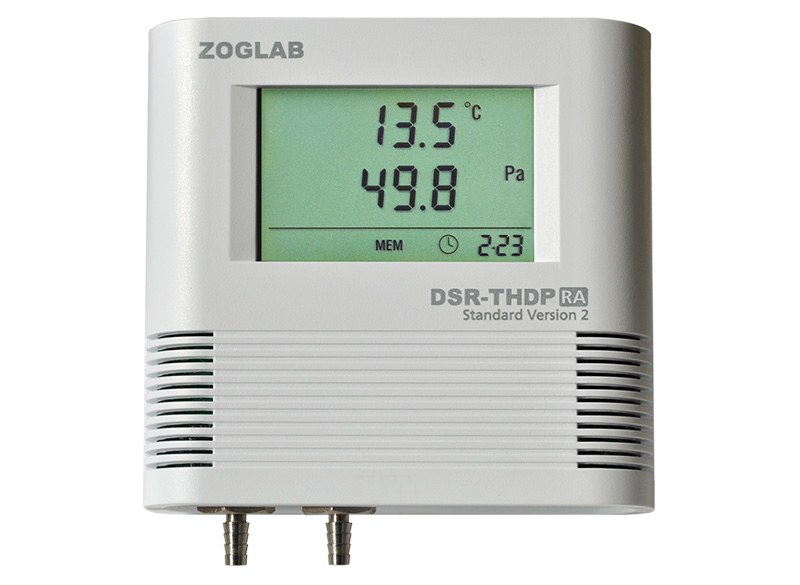

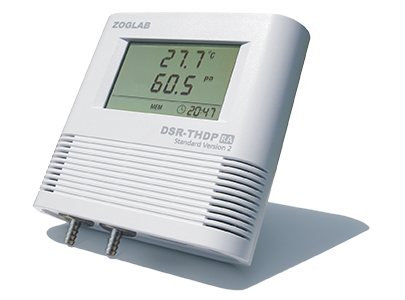

DSR-THDP
Data logger for Temperature Humidity and Differential Pressure
Specifications
· Simultaneously measures and logs temperature, humidity and differential pressure
· Support on-line linear calibration and zero setting
· Customized differential pressure measuring range between 0 and 1000Pa
· Suitable for pharmaceutical workshops, electronic production, precision machinery and other applications
Certificate
|
The DSR series data logger has been tested and found to comply with the qualifications designed by China Meteorological Administration and China State Bureau of Quality and Technical Supervision.
The DSR series data logger possesses multiple international patents and obtains the European Union CE certificate and FCC certifications.In addition,it has been assessed and found to meet the requirements of ISO 9001:2000 standard.The assorted data analysis software possesses independent intellectual property and achieves multiple national software certifications.
Specification
Measuring Data
| T Measuring Range | -30℃~70℃ |
| T Accuracy | ±0.3℃(23℃±2℃),full scale ±0.5℃ |
| T Resolution | 0.1℃/0.2℉ |
| RH Measuring Range | 0%~100%RH |
| RH Accuracy | ±3%RH(10%~85%RH),other range ±5%RH(Testing Environment 23℃±2℃) |
| RH Resolution | 0.1%RH |
| DP Measuring range | 0~100.0Pa，0~200.0Pa |
| DP Accuracy | ±1.5%FS±3Pa (Testing Environment 25℃,980.0 hPa~1015.0 hPa) |
| DP Resolution | 0.1Pa |
General
| Memory Size | 10,918[A] / 21,840[B] / 180,000[C] / 360,000[D]values |
| Alarm | High level and low level, display+beep+backlight |
| Sampling Interval | 2s、5s、10s、30s、60s、255s |
| Logging Interval | 2seconds~24hours |
| Start with Delay Time | 1~120s |
| Start Mode | Start immediately / Time-lapse start / Timing start |
| End Mode | Full / FIFO / Presetting units / Timing end |
| Timing Start / End | Random start / End with format YYMMDD HHMMSS |
| Storage Temperature | -50℃~90℃ |
| ESD Protection | ±25KV |
| Interface | RS232 / RS485[R] / USB[U] / LAN[L] / Wireless [W、B、Z、F、G] |
| Battery | 3.6V lithium battery ×1 |
| Battery Lifetime | Typical 1year (with a sample rate of 10 seconds),5 years （in sleep mode） |
| RTC Battery | CR2032 |
| RTC Battery | <12 mins/year |
| External voltage | 5~24V DC |
| Software | ANALYSIS |
| IP Class | IP54 |
Sensing Probe
| Model | Internal |
General Feature
| Dimensions | 123×117.3×33.4mm |
| Display Area | 66×42mm |
| Housing | ABS+PC,flame-retardant,toxicity and halogen free |
| Weight | 293g |

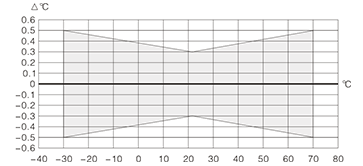

Temperature Accuracy |

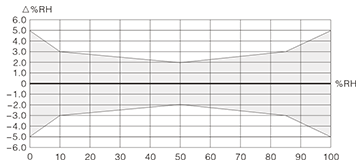

Humidity Accuracy |
 |
 |
Dimensions（Unit : mm）： |
 |
