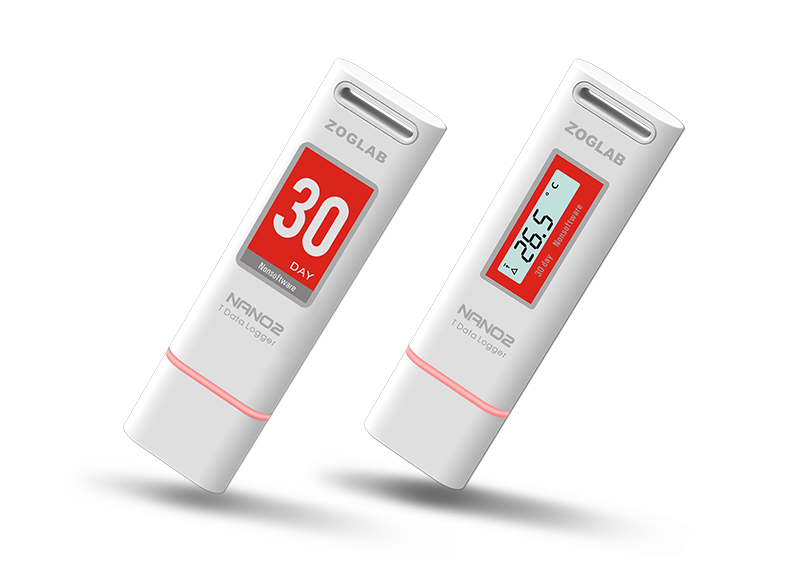

NANO2-T
Compact Temperature Logger
Specifications
· Super compact size designed for cold chain; connect with PC via the integrated USB port directly
· Auto PDF report once connected with PC without software operation
· HD LCD shift displays the real-time T & RH data, history max & min value and over-limit alarm
· Suitable for cold chain transportation with the Certification of Safe Air Transport
· Super low power consumption, reusable application, huge memory capacity
Certificate
|
Specification
Measuring Data
| Sensor model | Digital sensor/NTC |
| T Measuring range | -30℃~70℃，-40℃~85℃(No Display) |
| T Measuring accuracy | ±0.3℃(23℃±2℃)，±0.5℃(FS) |
| T Resolution | 0.1℃/0.2℉ |
General
| Memory size | 60,000 units / 120,000 units; customization is supported |
| Alarm | Highlight LED indicator with dual colors |
| Sampling interval | 10s |
| Logging interval | 2s~24hrs |
| Start with delay time | 1s~120s |
| Start mode | Immediate start / Time-lapse start / Timing start / Magnetic start |
| End mode | Full / Timing end / Magnetic end |
| Timing start/end | Random start/End with format YYMMDD HHMMSS |
| Interface | USB2.0 |
| Battery | 3.6V lithium battery (Rechargeable) |
| Battery lifetime | 45~150days (Working time) |
| Recharge times | ≥300 cycles |
| IP Class | IP64 |
| Storage temperature | -50℃~90℃ |
| Software | Quick Log |
| Dimensions | 79×22×7.4mm |
| Weight | 12g |
| LCD display area | 21×5mm |
| Housing | ABS+PC, flame-retardant, toxicity and halogen free |
| Certificates | CE, FCC, C-TICK, VCCI,CNAS Certification of Safe Air Transport |
Dimensions（Unit : mm）： |
 |
