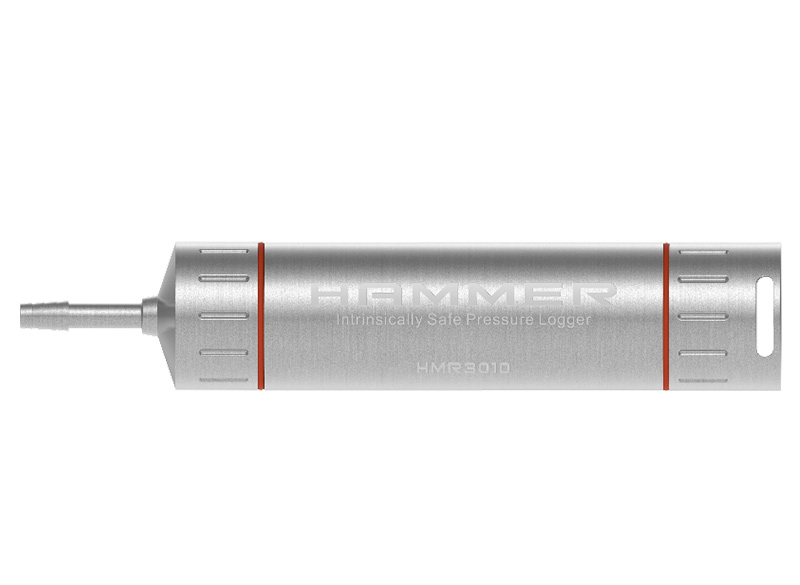

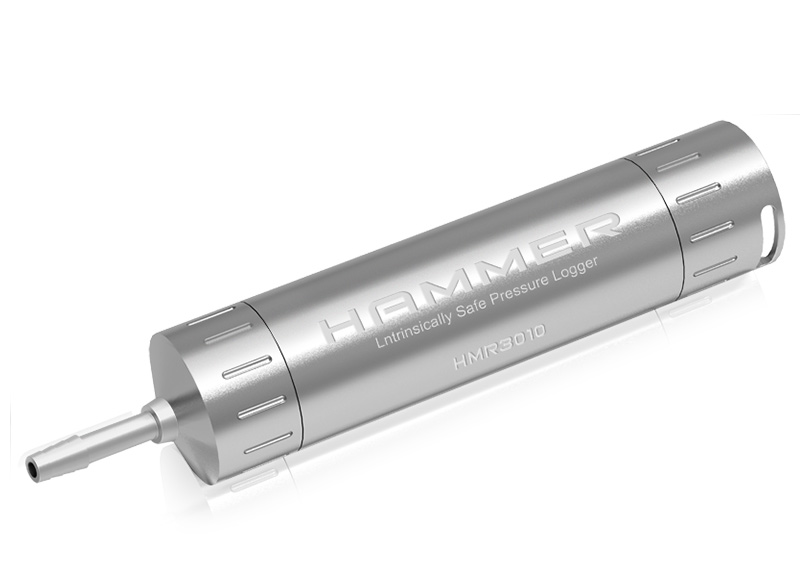

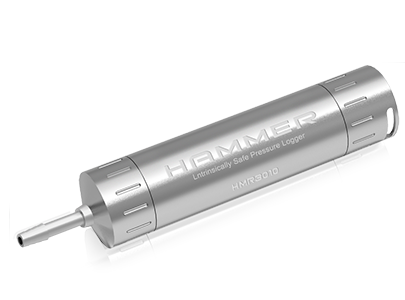

HMR3010
Stainless steel data logger for pressure
Specifications
· Sturdy stainless steel and magnesium aluminum alloy housing, IP68 protection
· High accuracy pressure measuring
· Comply with CE/FCC/UL/CSA/ Explosion-proof standard
· Flexible USB interface
Certificate
|
Specification
Measuring Data
| P Measuring Range | 10.0~1100.0 hPa |
| P Accuracy | ±0.5 hPa |
| P Resolution | 0.1 hPa |
General
| Memory size | 30,000 / 60,000 units |
| Alarm | High level and low level , LED Indicator light |
| Sampling Interval | 2s、5s、10s、30s、60s、255s |
| Logging Interval | 2seconds~24hours |
| Start with Delay Time | 1~120s |
| Start Mode | Key operation / Start immediately / Time-lapse start / Timing start |
| End Mode | Key operation / Full / FIFO / Presetting units / Timing end |
| Timing Start / End | Random start / end with format YYMMDD HHMMSS |
| Working Temperature | -55℃~125℃，-40℃~85℃（basement） |
| Storage Temperature | -50℃~125℃，-50℃~90℃（basement） |
| ESD Protection | ±45KV |
| Interface | Mini USB |
| Battery | LS14250（temperauture range:wide） |
| Battery Lifetime | 1 year / 3 years （in sleep mode） |
| Clock Accuracy | <12 mins/year |
| Software | ANALYSIS 3 |
| IP Class | IP68 |
Sensing Probe
| Model | Silicon Piezoresistive Sensor |
| Dimensions | Φ6.5×32 mm |
General Feature
| Dimensions | Φ30×154 mm |
| Housing | 316L Stainless steel |
| Weight | 230g |
Dimensions（Unit : mm）： |
 |
