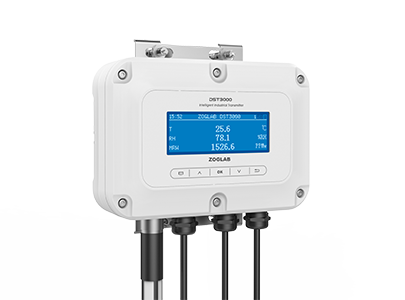

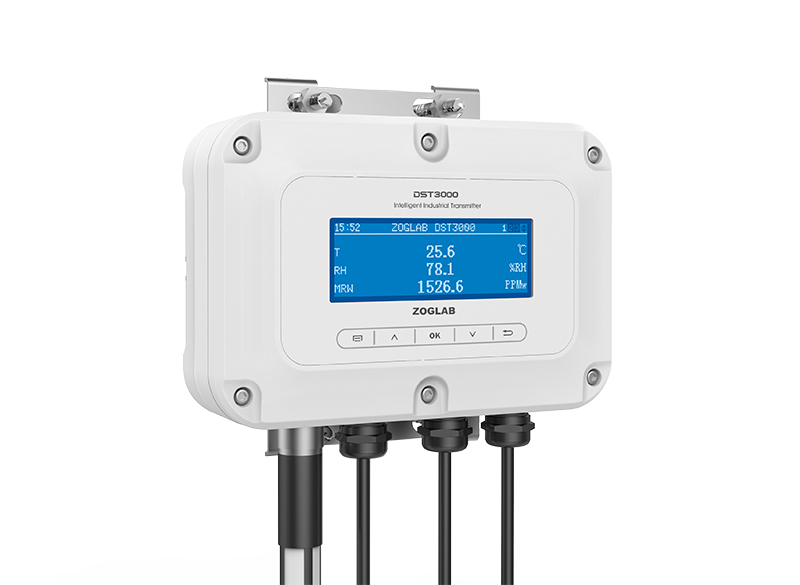

DST3000
Intelligent industrial transmitter
Specifications
· Man-machine interface with substantial contents
· Flexible and replaceable probes ensures powerful connection capacity
· Support output with current, voltage, Rs485, LAN or electric relay
· Applied to industrial environment, with progressive class of IP65
· Multiple, also flexible mounting and integration ways
Certificate
|
Specification
Measuring Data
| T Measuring range | -196℃~700℃（Customizable） |
| T Accuracy | ±0.2℃ / ±0.3℃ / ±0.5℃ / ±1.0℃ |
| T Resolution | 0.1℃ / 0.2℉，0.01℃ / 0.02℉ |
| H Measuring range | 0%~100%RH |
| H Accuracy | ±0.8%RH / ±1.5%RH / ±2%RH / ±3%RH |
| H Resolution | 0.1%RH |
General
| Power Supply | 8~30V |
| Working Temperature | -30℃~70℃，-40℃~85℃(No display) |
| Working Humidity | 0%~100%RH |
| Storage Temperature | -50℃~90℃ |
| Transmitter Type | 3 wire 4~20mA,Voltage output,RS485 |
| Analog Output | 4~20mA RL<(UV-10)/0.02< 500Ω / 0~10V -1mA<IL<1mA / 0~5V -1mA<IL<1mA / 0~1V -1mA<IL<1mA |
| Power Consumption | ≤4mA(24V DC) |
| Digital Output | RS485/RS232/LAN/USB |
| ESD Protection | ±25KV |
| IP Class | IP65 |
Sensing Probe
| Model | HC2-S / HMP155 / HMP110 / HMP60 / DSP1200 / DSP1500 / DSP1800 / DSP2500 |
General Feature
| Dimensions | 160×105×45mm |
| Housing | ABS+PC,flame-retardant,toxicity and halogen free |
| Display Area | 80×28mm |
| Weight | 500g |

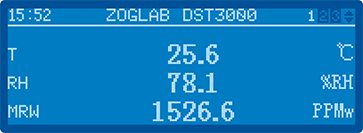

Display ： |
 |

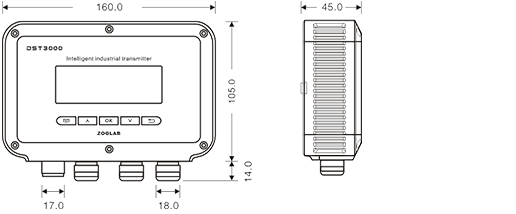

Mounting Dimensions(mm)： |
 |
