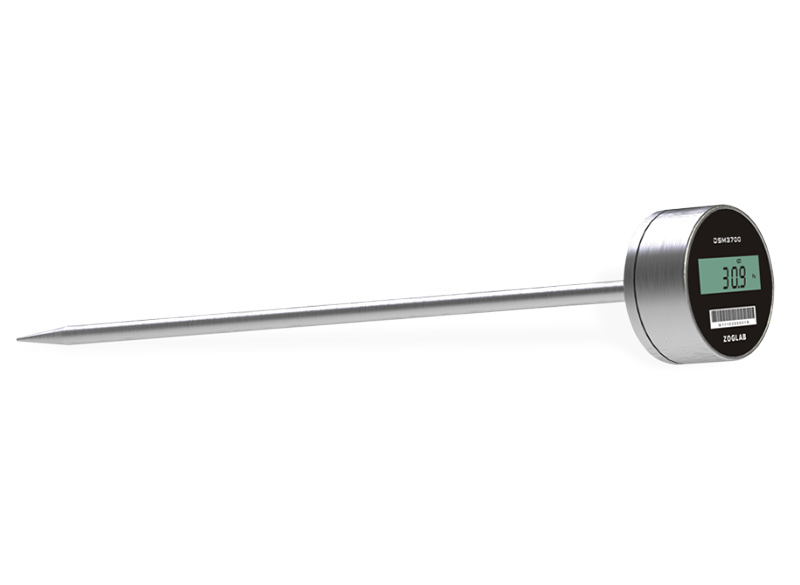

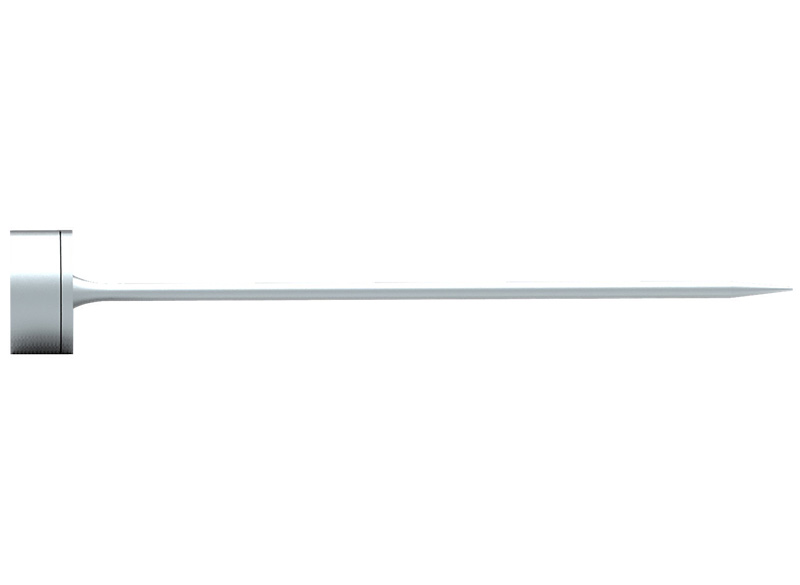

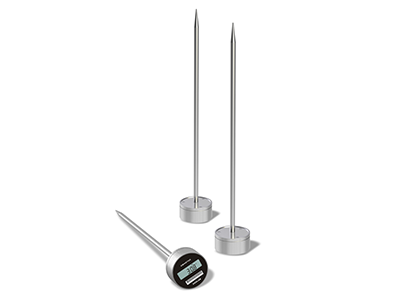

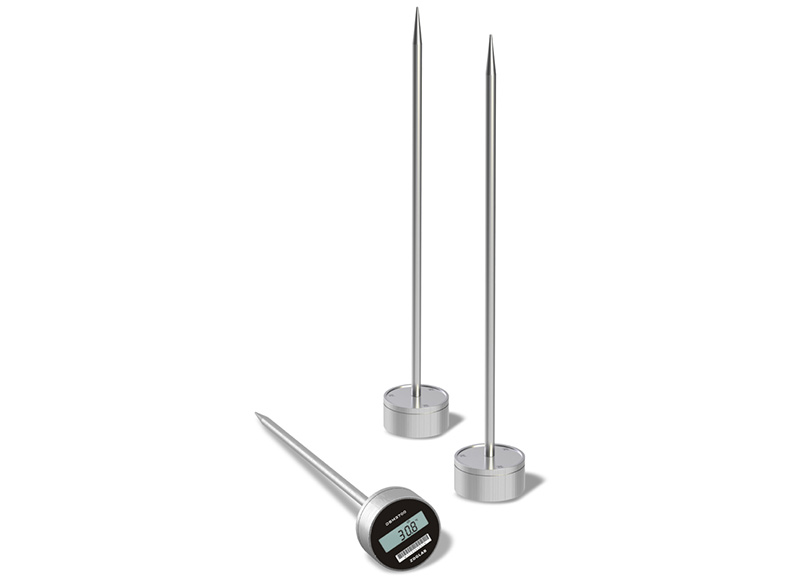

DSM3700
Probe type temperature meter
Specifications
· Fully coated with steel, progressive class of IP68
· Unique temperature sensing design shortens measuring time
· Wide viewing angle for fast and accurate data reading
· Super-low current consumption ensures built-in battery to continuously work for 3-5 years
· One and only serial number helps to trace it's own calibrated data
Specification
Measuring Data
| T Measuring Range | -40℃~125℃ , -100℃~200℃ , -50℃~500℃ , -40℃~60℃ |
| T Accuracy | ±0.5℃(-25℃~85℃) Range 1/2/3 , ±0.3℃(-40℃~80℃) Range 1 , ±0.1℃(-40℃~60℃) Range 4 |
| T Resolution | 0.1℃/0.2℉, 0.01℃/0.02℉ |
General
| Header Working Temperature | -20℃~70℃ |
| Air Response Time | 10s |
| H?O Response Time | 2s |
| Air Stable Time | 600s(MAX) |
| H?O Stable Time | 120s(MAX) |
| Storage Temperature | -50℃~90℃ |
| ESD Protection | ±25KV |
| Battery | LS14250 |
| Battery Lifetime | 5 years |
| Clock Accuracy | <12 mins/year |
| Clock Feature | Auto adjustable |
| Maximum Extrusion Force | 75kg(Vertical Meter Head) |
| IP Class | IP68 |
Sensing Probe
| Model | NTC / PT100 / Digital sensor |
General Feature
| Dimensions | Φ68×32mm(Meter Head) ,Φ10×405mm(Probe) |
| Display | 175° Wide Angle of the LCD panel |
| Housing | Non-Rust Steel 316L/304 |
| Weight | 585g |

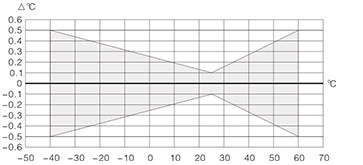

Temperature Accuracy(-40℃~60℃,for example) |
 |

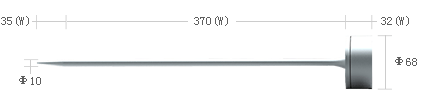

Dimensions (Unit : mm)： |
 |
